1.Application overview
New energy vehicles are propelled by electric motors, and the motor drive system is adopted to regulate the speed of the AC motor and enhance energy efficiency by adjusting the frequency of current output. The motor operates efficiently, reliably, and conserves energy through controlled switching of power semiconductor devices, which acts as the central components for power conversion.
Features:
1. Low on-voltage drop Vcesat, high short-circuit withstand Tsc;
2. High reliability, strong impact resistance;
Includes charging pile, On-Board Chargers (OBC), main drive unit, auxiliary drive, air conditioning compressor driver, PTC heater and more.
2.Application industry
New energy vehicle main drive unit
On-Board Charger (OBC)
DC charging station
Thermal management system
New energy vehicle auxiliary drive
3.Application scheme
Three phase full bridge motor drive circuit structure

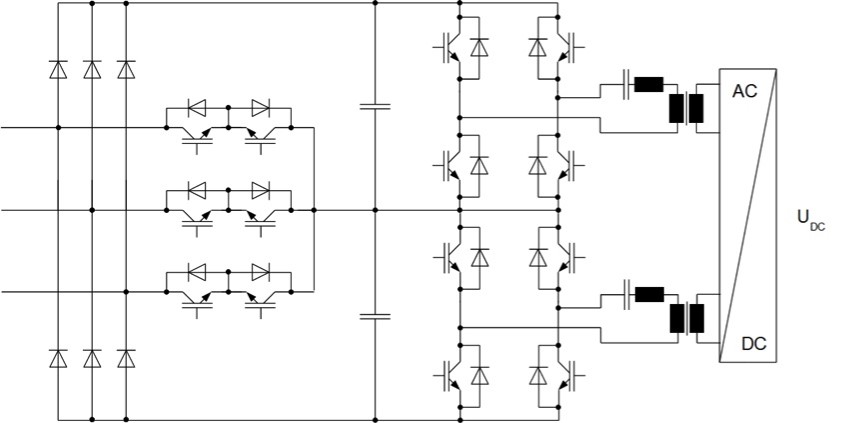

DC charging pile circuit structure
4.推荐型号
No data
